Instance segmentation

Instance Segmentation¶

The instance segmentation module in CryoSiam identifies individual macromolecular complexes as distinct, volumetric objects within a tomogram.

Unlike semantic segmentation, which labels voxels by class, instance segmentation separates individual particles, even when they belong to the same class or touch each other.

Instance segmentation is typically run after lamella prediction to restrict analysis to the sample region and avoid false positives outside the lamella.

Recommended pipeline:
Denoising → Lamella Prediction → Instance Segmentation

Overview¶

Instance segmentation produces:

Instance masks – each detected object is labeled with a unique ID
Probability maps – voxel-wise confidence of object presence and boundaries
Optional lamella masking – restricts predictions to valid sample regions

Lamella masking is strongly recommended, as the instance model was trained only on lamella regions.

Example results¶

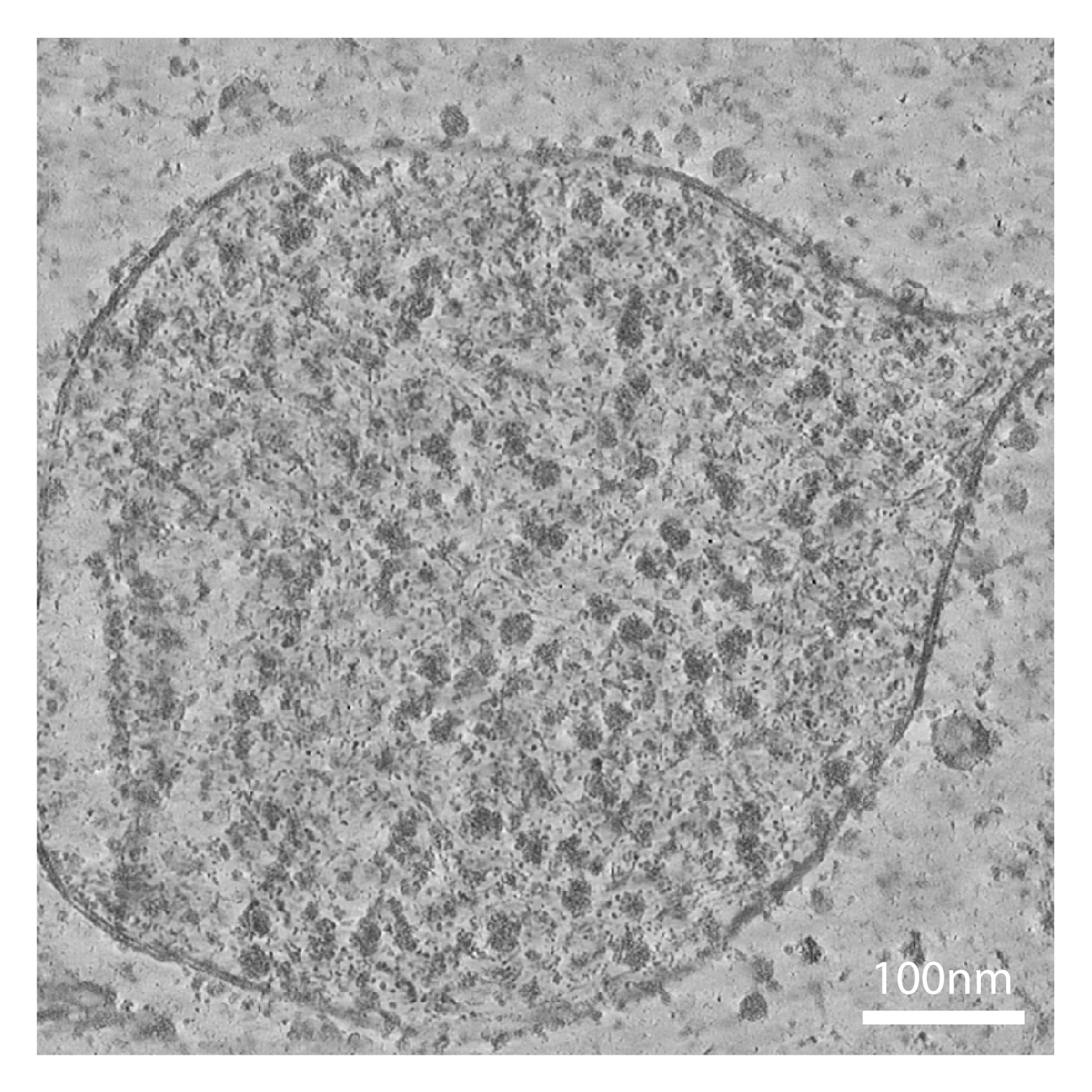

Input (denoised tomogram)¶

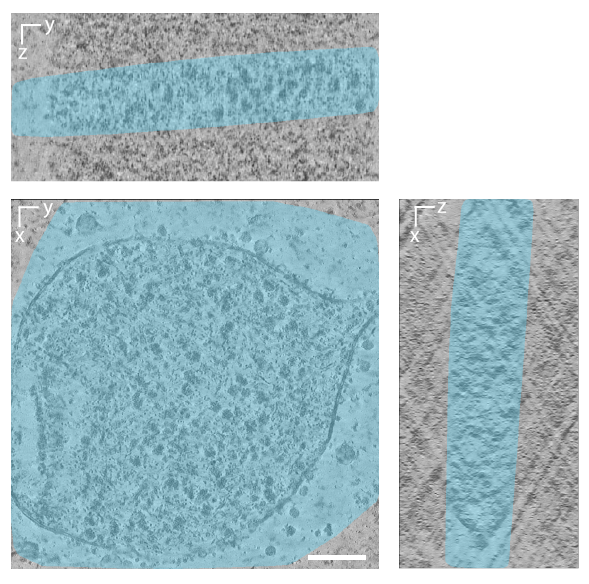

Lamella mask (recommended)¶

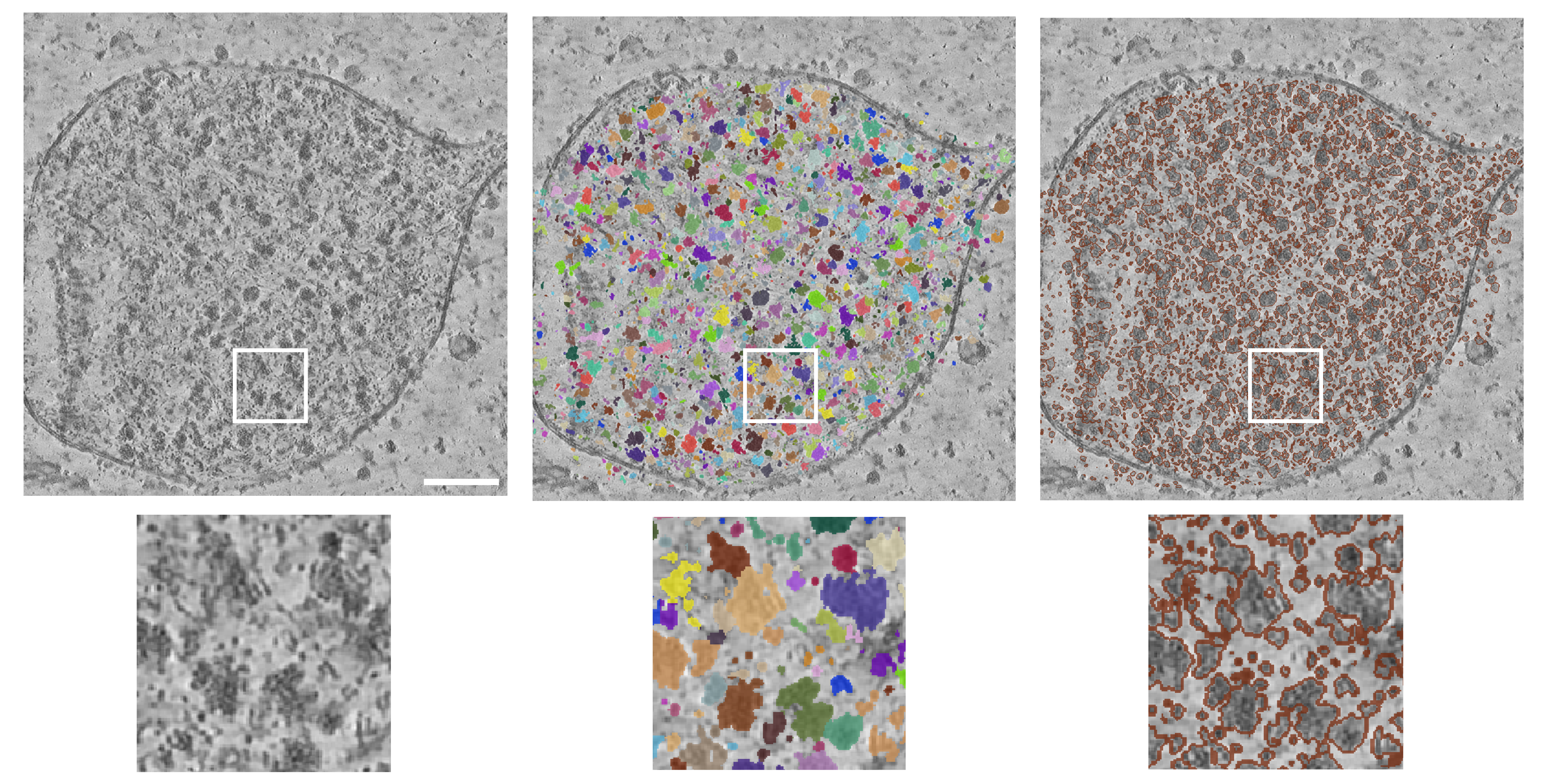

Instance segmentation output¶

Trained Model¶

A pre-trained instance segmentation model is available: CryoSiam instance segmentation model (v1.0)

Running instance segmentation¶

Run instance segmentation using a YAML configuration file:

cryosiam instance_predict --config_file=configs/config_instance.yaml

To process a single tomogram only, use:

cryosiam instance_predict --config_file=configs/config_instance.yaml --filename TS_01.mrc

Visualization¶

Instance masks and probability maps can be visualized using CryoSiam-Vis. See visualization instructions here.

Example Configuration (`configs/config_instance.yaml`)¶

Download instance config

data_folder: '/scratch/stojanov/dataset1/predictions/denoised'
mask_folder: '/scratch/stojanov/dataset1/predictions/lamella'
prediction_folder: '/scratch/stojanov/dataset1/predictions/instance'

trained_model: '/scratch/stojanov/trained_models/cryosiam_instance.ckpt'
file_extension: '.mrc'

test_files: null

save_raw_predictions: False

parameters:
  data:
    patch_size: [ 128, 128, 128 ]
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    in_channels: 1
    spatial_dims: 3
    threshold_foreground: 0.65
    boundary_bias: 0.8
    min_center_distance: 1
    max_center_distance: 5
    distance_type: 1   # 0 for using only predicted distances, 1 for using predicted distances + cdist from foreground, 2 for using only cdist
    postprocessing: False

hyper_parameters:
  batch_size: 10

Config Reference¶

Top‑level keys¶

Key	Type	Must change the default value	Description
`data_folder`	`str`	✅	Directory containing denoised tomograms
`mask_folder`	`str`	✅	Directory containing lamella masks (recommended
`prediction_folder`	`str`	✅	Output directory for instance segmentation results
`trained_model`	`str`	✅	Path to the instance segmentation model checkpoint (`.ckpt`)
`file_extension`	`str`	❌	Input file extension (`.mrc` or `.rec`, default: `.mrc`)
`test_files`	`list[str]` or `null`	❌	Specific tomograms to process; `null` processes all files
`save_internal_files`	`bool`	❌	Save intermediate outputs (probability maps)

`parameters`¶

Key	Type	Must change the default value	Description
`data.patch_size`	`list[int]`	❌	Sliding-window patch size for 3D inference
`data.min`	`float`	❌	Intensity minimum value for data scaling
`data.max`	`float`	❌	Intensity maximum value for data scaling
`data.mean`	`float`	❌	Mean used for normalization
`data.std`	`float`	❌	Std used for normalization
`network.in_channels`	`int`	❌	Number of input channels (usually `1`)
`network.spatial_dims`	`int`	❌	Dimensionality of the model (`3` for tomograms)
`network.threshold_foreground`	`float`	✅	Foreground probability cutoff for seed generation (default `0.4`). Lower = more sensitive
`network.boundary_bias`	`float`	❌	Bias controlling separation of touching objects; higher values enforce stronger borders
`network.min_center_distance`	`int`	❌	Minimum allowed distance (voxels) between centers (controls splitting)
`network.max_center_distance`	`int`	❌	Maximum allowed distance (voxels) for merging/association
`network.distance_type`	`int`	❌	Distance strategy: `0` predicted, `1` predicted+cdist (default), `2` cdist only
`network.postprocessing`	`bool`	❌	Apply additional connected-component cleanup

`hyper_parameters`¶

Key	Type	Must change the default value	Description
`batch_size`	`int`	❌	Number of 3D patches processed per forward pass.

Tips
Lower threshold_foreground to detect weaker objects; raise it to reduce false positives.
Tune boundary_bias and center-distance parameters to better separate touching particles.
Balance batch_size and patch_size to fit GPU memory.

Troubleshooting¶

Symptom	Suggested Fix
CUDA out of memory	Reduce `batch_size` or `patch_size`
Objects outside lamella	Ensure lamella prediction was run and `mask_folder` is set correctly
Over-segmentation	Increase `threshold_foreground` or adjust center-distance parameters
