Tutorial: End‑to‑End CryoSiam on CryoET Data Portal – TS_02 (Dataset 10003)¶

This walkthrough shows how to run the full CryoSiam pipeline on TS_02 from the CryoET Data Portal dataset **10003 ** (Mycoplasma pneumoniae with chloramphenicol).
We’ll go from raw tomogram to:

denoised tomogram
lamella prediction
semantic segmentation
instance segmentation
subtomogram embeddings
particle identification

Why TS_02? This tomogram was used to generate the examples in the figures from the CryoSiam paper.

Data source¶

Dataset page: CryoET Data Portal – Mycoplasma pneumoniae treated with chloramphenicol, Deposition 10003
- Runs include TS_02 reconstructed tomogram.
You can browse and download via the portal UI, the Python API client.

Trained Models¶

The available trained models and where to download them are described here: Trained models.

Prerequisites¶

We assume you already installed CryoSiam as shown in the docs, as well as CryoSiam-Vis shown in docs.

Folder layout we’ll use (adjust the root path /scratch/ to your setup):

/scratch/cryosiam_tutorial/
├── data/                    # raw or denoised tomograms
├── models/                  # pretrained models of CryoSiam
├── preds/                   # prediction folders
│   ├── denoised/
│   ├── lamella/
│   ├── semantic/
│   └── instance/
└── configs/                 # config files

Step 0 - Download TS_02¶

Option A: Portal UI¶

Open the dataset page, search for TS_02, click View Tomogram, and download the tomogram volume.
Save as: /scratch/cryosiam_tutorial/data/TS_02.mrc.

Option B: Python API client¶

First, install the python cryoet_data_portal package:

pip install cryoet_data_portal

Then download tomogram TS_02:

from cryoet_data_portal import Client, Tomogram

client = Client()

tomogram = Tomogram.get_by_id(client, 632)
tomogram.download_mrcfile()

Step 1 - Denoising¶

Download the model from here.

Create configs/config_denoising.yaml (download and adapt from the general example):

data_folder: '/scratch/cryosiam_tutorial/data'
log_dir: '/scratch/cryosiam_tutorial/'
prediction_folder: '/scratch/cryosiam_tutorial/preds/denoised'

trained_model: '/scratch/cryosiam_tutorial/models/cryosiam_denoising.ckpt'
file_extension: '.mrc'

test_files: null

save_raw_predictions: False
scale_prediction: True

parameters:
  gpu_devices: 1
  data:
    patch_size: [ 128, 128, 128 ]
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    in_channels: 1
    spatial_dims: 3

hyper_parameters:
  batch_size: 3

Run:

cd /scratch/cryosiam_tutorial
conda activate cryosiam
cryosiam denoise_predict --config_file=configs/config_denoising.yaml

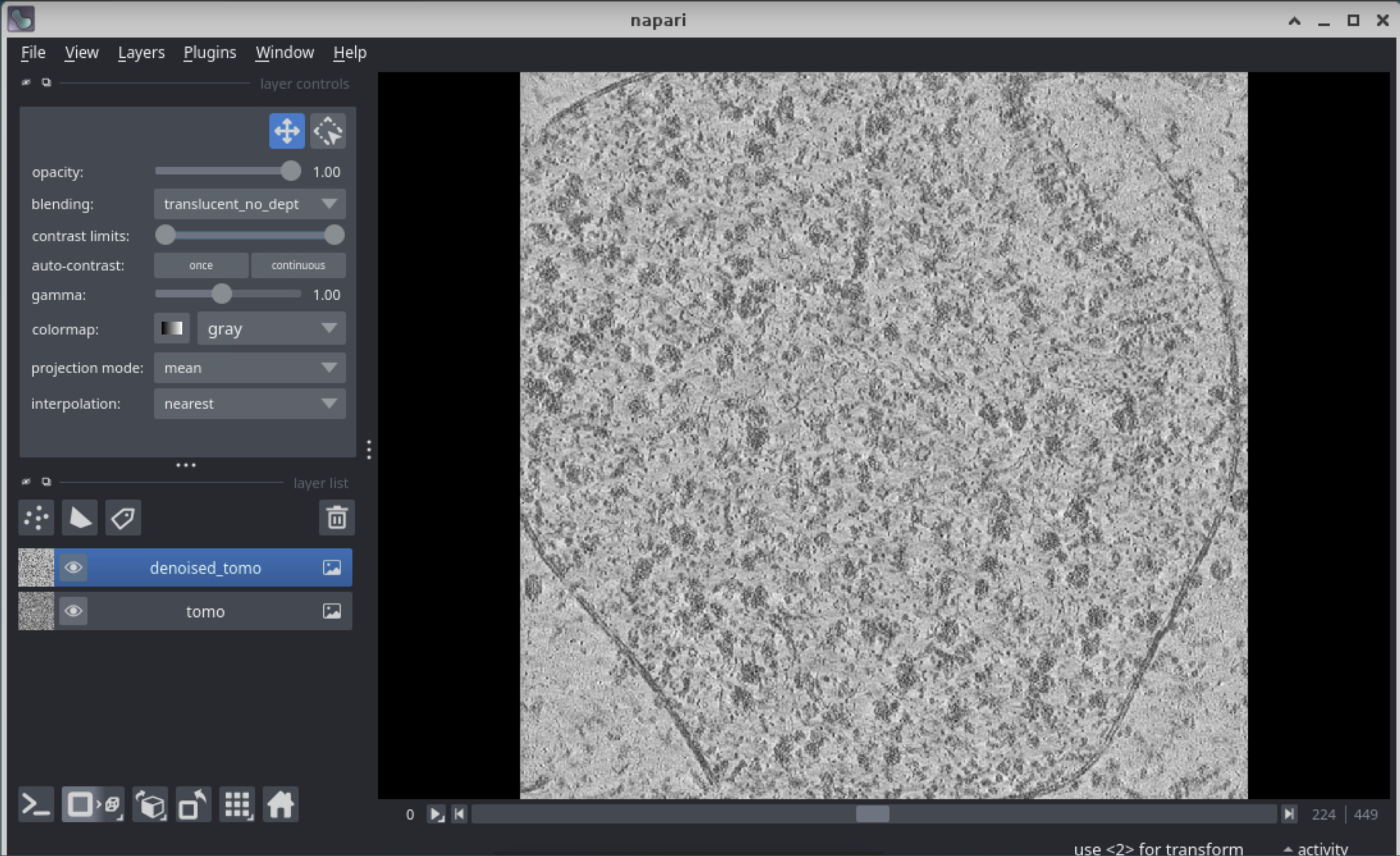

Visualize with:

conda activate cryosiam_vis
cryosiam_vis visualize_denoising --config_file=configs/config_denoising.yaml  --filename TS_02.mrc

Output:

Step 2 - Lamella Prediction¶

Download the model from here.

Create configs/config_lamella.yaml (download and adapt from the general example):

data_folder: '/scratch/cryosiam_tutorial/preds/denoised'
log_dir: '/scratch/TS02_tutorial/'
prediction_folder: '/scratch/TS02_tutorial/preds/lamella'

trained_model: '/scratch/cryosiam_tutorial/models/cryosiam_lamella.ckpt'
file_extension: '.mrc'

test_files: null

save_internal_files: False

parameters:
  gpu_devices: 1
  data:
    patch_size: [ 128, 128, 128 ]
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    in_channels: 1
    spatial_dims: 3
    threshold: 0.9
    postprocessing: True
    3d_postprocessing: False

hyper_parameters:
  batch_size: 2

Run:

conda activate cryosiam
cryosiam semantic_predict --config_file=configs/config_lamella.yaml

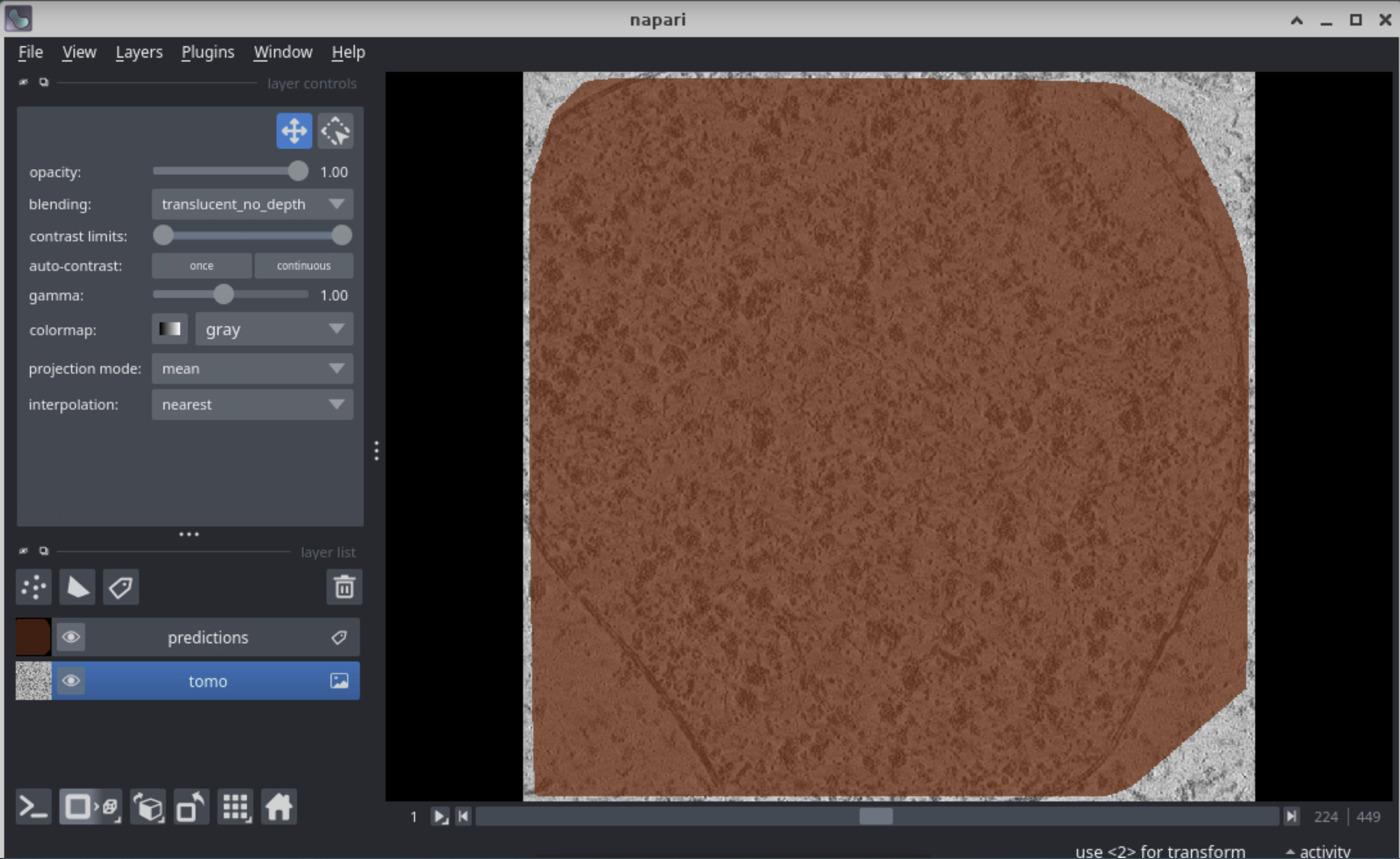

Visualize with:

conda activate cryosiam_vis
cryosiam_vis visualize_semantic --config_file=configs/config_lamella.yaml  --filename TS_02.mrc

Output:

Step 3 - Semantic Segmentation (classes)¶

Download the model from here.

Create configs/config_semantic.yaml download and adapt from the general example):

data_folder: '/scratch/cryosiam_tutorial/preds/denoised'
mask_folder: '/scratch/cryosiam_tutorial/preds/lamella'
log_dir: '/scratch/cryosiam_tutorial/'
prediction_folder: '/scratch/cryosiam_tutorial/preds/semantic'

trained_model: '/scratch/cryosiam_tutorial/models/cryosiam_semantic_segmentation.ckpt'
file_extension: '.mrc'

test_files: null

parameters:
  gpu_devices: 1
  data:
    patch_size: [ 128, 128, 128 ]
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    in_channels: 1
    spatial_dims: 3
    threshold: 0.1
    postprocessing_sizes: [ -1, 5000, -1, -1, -1 ]

hyper_parameters:
  batch_size: 2

Run:

conda activate cryosiam
cryosiam semantic_predict --config_file=configs/config_semantic.yaml
cryosiam semantic_postprocessing --config_file=configs/config_semantic.yaml

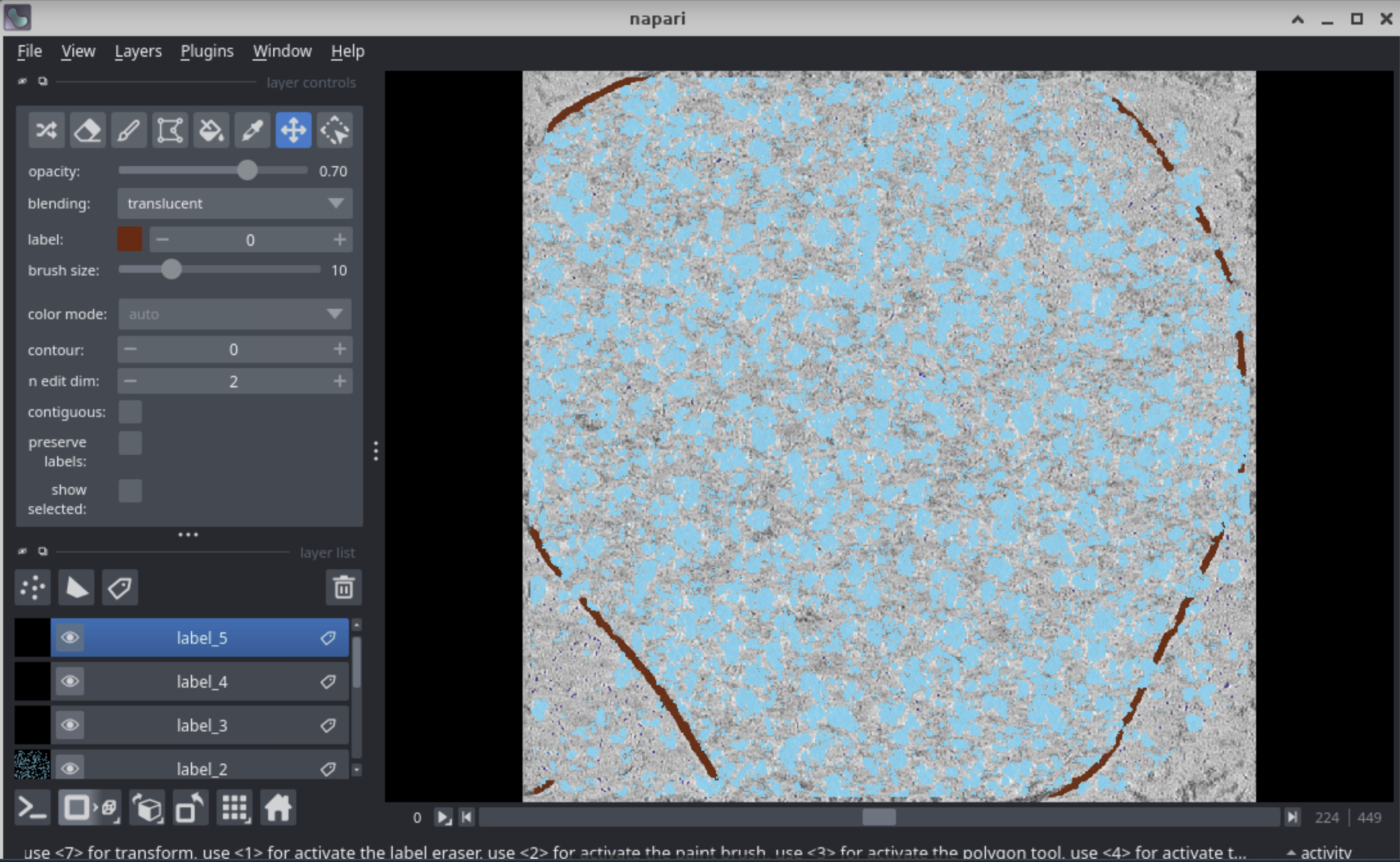

Visualize with:

conda activate cryosiam_vis
cryosiam_vis visualize_semantic --config_file=configs/config_semantic.yaml  --filename TS_02.mrc

Output:

Step 4 - Instance Segmentation (objects)¶

Download the model from here.

Create configs/config_instance.yaml download and adapt from the general example):

data_folder: '/scratch/cryosiam_tutorial/preds/denoised'
mask_folder: '/scratch/cryosiam_tutorial/preds/lamella'
log_dir: '/scratch/cryosiam_tutorial/'
prediction_folder: '/scratch/cryosiam_tutorial/preds/instance'

trained_model: '/scratch/cryosiam_tutorial/models/cryosiam_instance.ckpt'
file_extension: '.mrc'

test_files: null

save_raw_predictions: False

parameters:
  gpu_devices: 1
  data:
    patch_size: [ 128, 128, 128 ]
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    in_channels: 1
    spatial_dims: 3
    threshold_foreground: 0.65
    boundary_bias: 0.8
    min_center_distance: 1
    max_center_distance: 4
    distance_type: 1   # 0 for using only predicted distances, 1 for using predicted distances + cdist from foreground, 2 for using only cdist
    postprocessing: True

hyper_parameters:
  batch_size: 3

Run:

conda activate cryosiam
cryosiam instance_predict --config_file=configs/config_instance.yaml

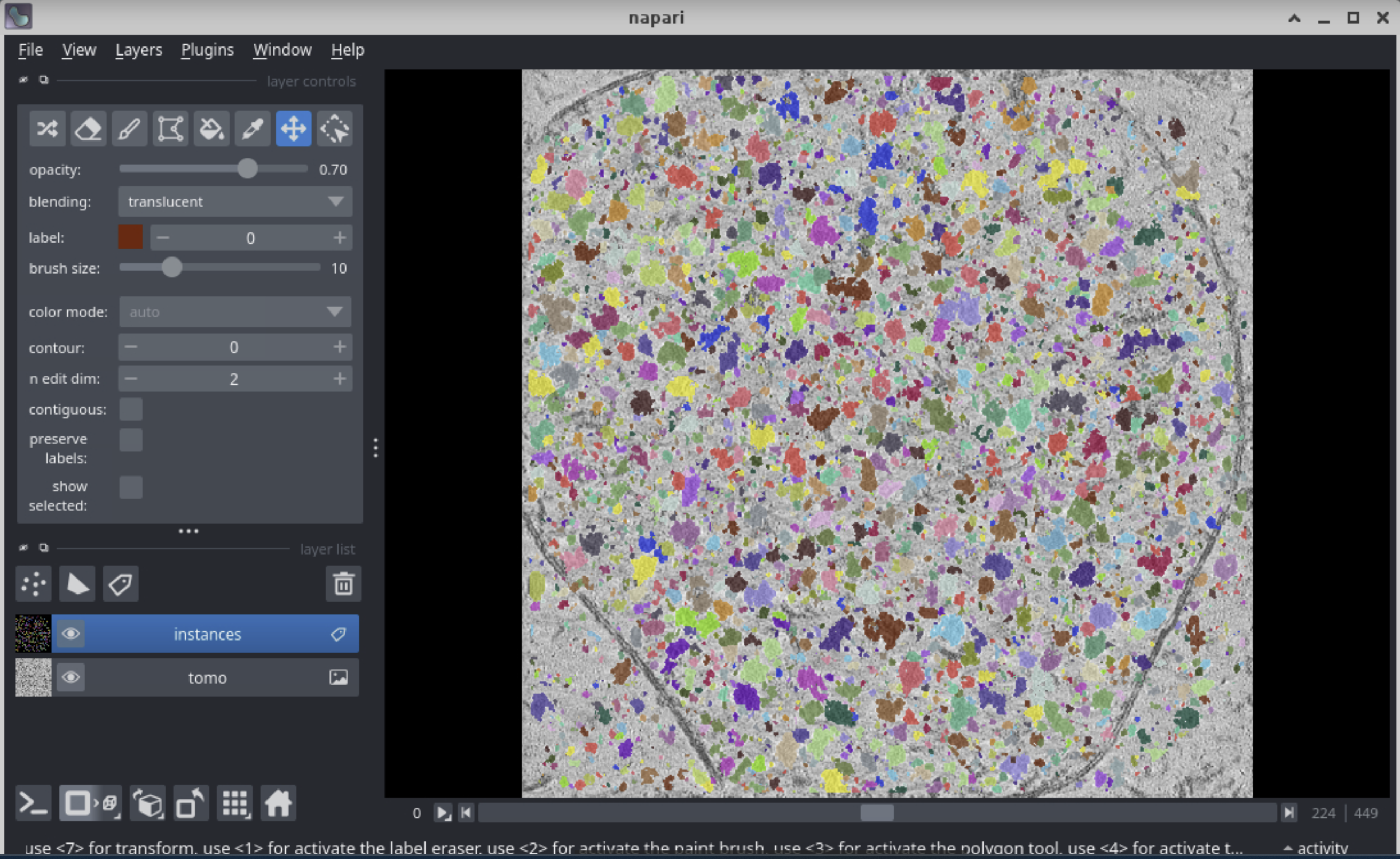

Visualize with:

conda activate cryosiam_vis
cryosiam_vis visualize_instance --config_file=configs/config_instance.yaml  --filename TS_02.mrc

Output:

Step 5 - Filter and visualize instances within a mask (membrane proteins)¶

This step takes the predicted mask for the membrane and isolates the instances interacting with that mask

Take the config file from the previous step, and add the fields filtering_mask_folder, filtering_mask_expand_voxels and filtering_mask_expand_labels.

data_folder: '/scratch/cryosiam_tutorial/preds/denoised'
mask_folder: '/scratch/cryosiam_tutorial/preds/lamella'
log_dir: '/scratch/cryosiam_tutorial/'
prediction_folder: '/scratch/cryosiam_tutorial/preds/instance'

trained_model: '/scratch/cryosiam_tutorial/models/cryosiam_instance.ckpt'
file_extension: '.mrc'


filtering_mask_folder: '/scratch/cryosiam_tutorial/preds/semantic'
filtering_mask_expand_voxels: 2
filtering_mask_labels: [1]

test_files: null

save_raw_predictions: False

parameters:
  gpu_devices: 1
  data:
    patch_size: [ 128, 128, 128 ]
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    in_channels: 1
    spatial_dims: 3
    threshold_foreground: 0.65
    boundary_bias: 0.8
    min_center_distance: 1
    max_center_distance: 4
    distance_type: 1   # 0 for using only predicted distances, 1 for using predicted distances + cdist from foreground, 2 for using only cdist
    postprocessing: True

hyper_parameters:
  batch_size: 10

Run:

conda activate cryosiam
cryosiam instance_filter --config_file=configs/config_instance.yaml

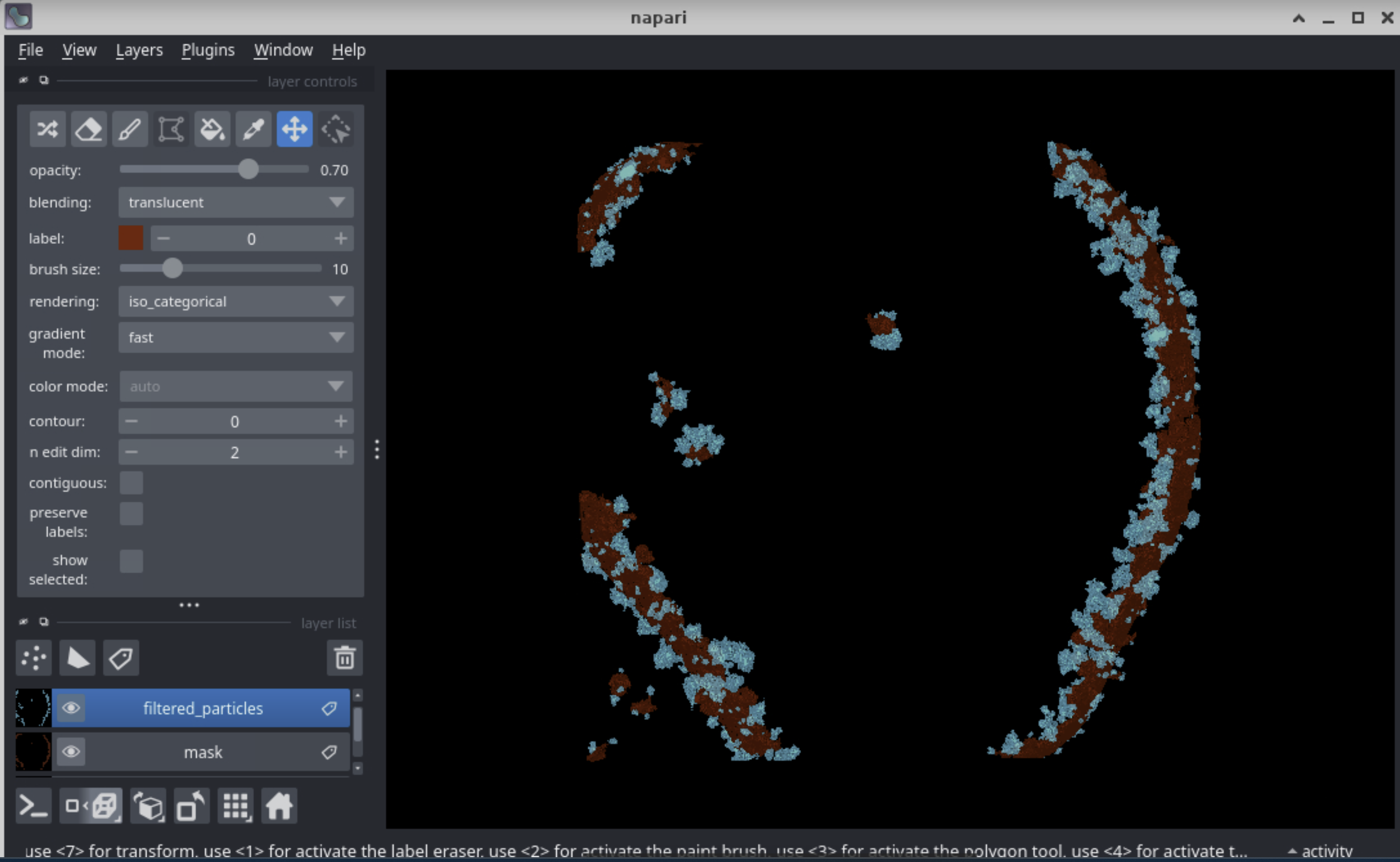

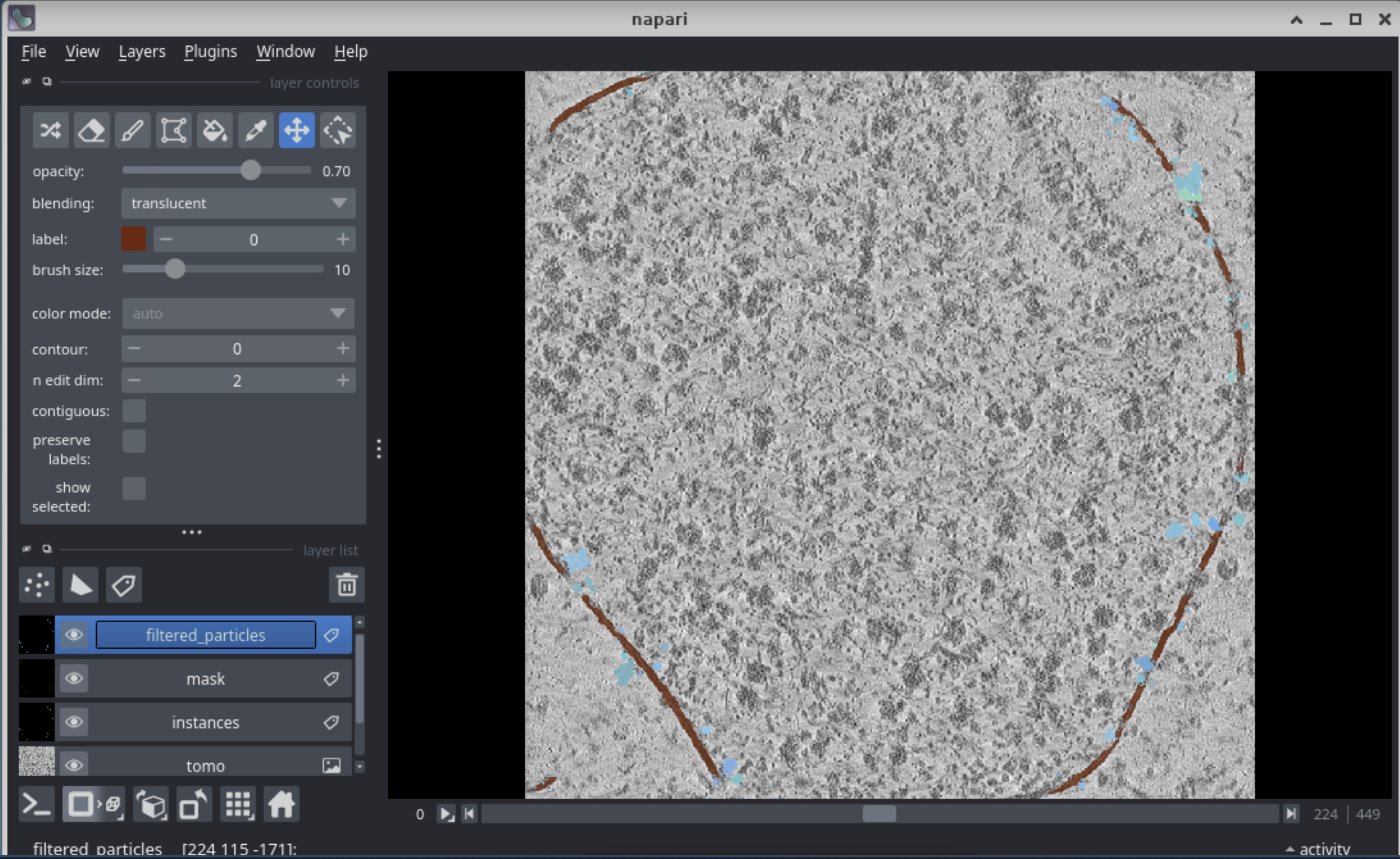

Visualize with:

conda activate cryosiam_vis
cryosiam_vis visualize_filtered_instance --config_file=configs/config_instance.yaml  --filename TS_02.mrc

Output:

Step 6 - Subtomogram Embeddings¶

Download the model from here.

Create configs/config_subtomo_embeddings.yaml download and adapt from the general example):

data_folder: '/scratch/cryosiam_tutorial/preds/denoised'
instances_mask_folder: '/scratch/cryosiam_tutorial/preds/instance'
log_dir: '/scratch/cryosiam_tutorial/'
prediction_folder: '/scratch/cryosiam_tutorial/preds/subtomo_embeds'

trained_model: '/scratch/cryosiam_tutorial/models/simsiam_embeds_denoised_convex_hull.ckpt'
contrastive: True
file_extension: '.mrc'

test_files: null
clustering_files: null
visualization_files: null

min_particle_size: 1000  # create embeddings only to instances this much min voxels in their mask
max_particle_size: null
masking_type: 1
expand_labels: 3

clustering_kmeans:
  num_clusters: 6
  visualization: True

clustering_spectral:
  num_clusters: 6
  estimate_num_clusters: False
  visualization: True

visualization:
  prediction_folder: '/scratch/cryosiam_tutorial/preds/subtomo_embeds/vis'
  distance: 'euclidean'
  pca_components: null
  visualization_suffix: 'instance_regions.csv'
  visualize_umap: True
  3d_umap: False

parameters:
  gpu_devices: 0
  data:
    patch_size: [ 64, 64, 64 ]
    patch_overlap: null
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    spatial_dims: 3
    in_channels: 1
    dim: 1024

hyper_parameters:
  batch_size: 10

Run:

# Generate embeddings (TS_02 only)
cryosiam simsiam_embeddings_predict --config_file=configs/config_subtomo_embeddings.yaml --filename TS_02.mrc

# Visualize (UMAP/PCA)
cryosiam simsiam_visualize_embeddings --config_file=configs/config_subtomo_embeddings.yaml

# Optional clustering
cryosiam simsiam_embeddings_kmeans_clustering --config_file=configs/config_subtomo_embeddings.yaml
cryosiam simsiam_embeddings_spectral_clustering --config_file=configs/config_subtomo_embeddings.yaml

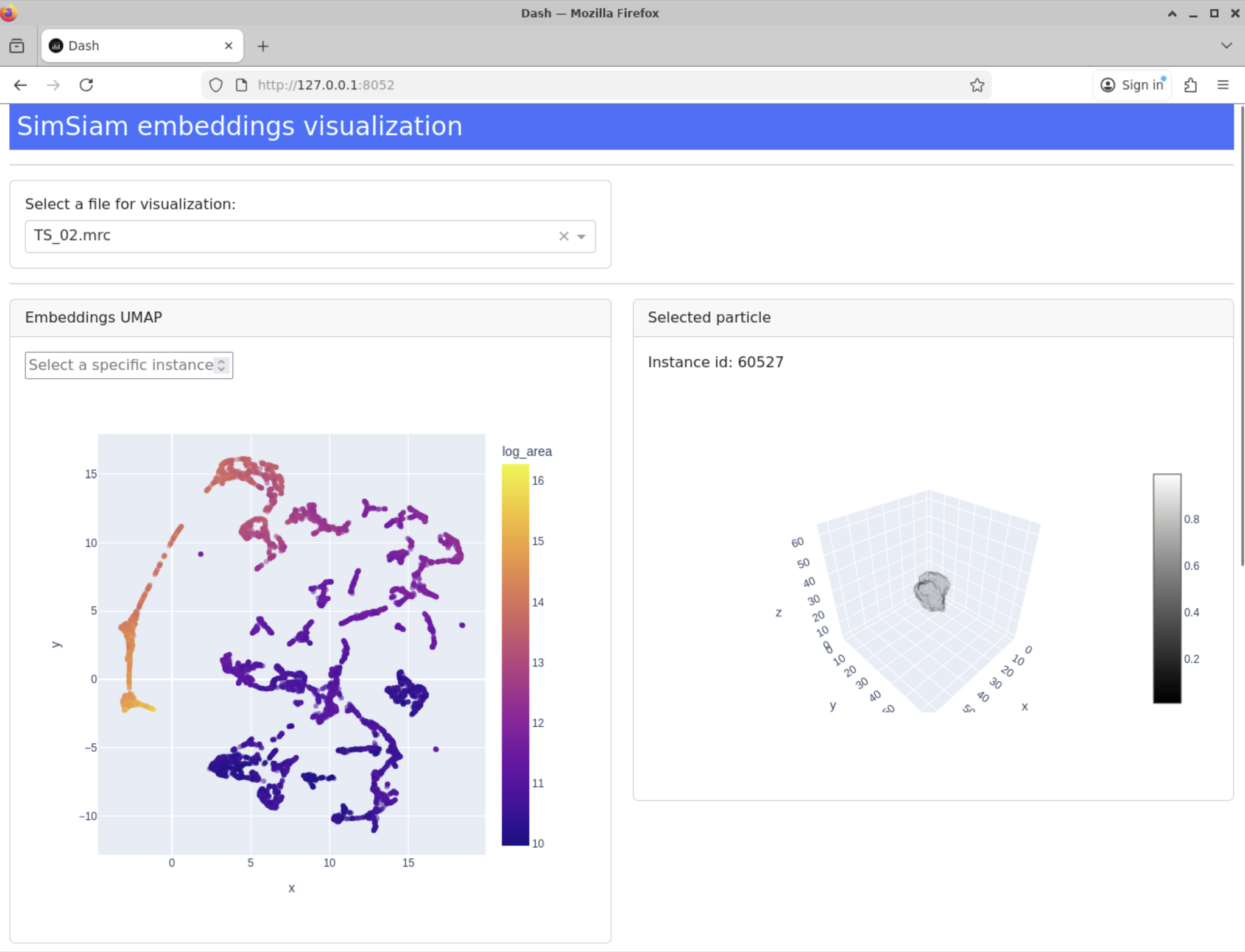

Visualize with:

conda activate cryosiam_vis
cryosiam_vis visualize_embeddings --config_file=configs/config_subtomo_embeddings.yaml

Output:

Visualize clusters with:

conda activate cryosiam_vis
cryosiam_vis visualize_embeddings_clusters --config_file=configs/config_subtomo_embeddings.yaml --clustering=spectral

Output:

Step 7 - Particle identification¶

Download the model from here.

Create configs/config_semantic_particle.yaml download and adapt from the general example):

data_folder: '/scratch/cryosiam_tutorial/preds/denoised'
mask_folder: '/scratch/cryosiam_tutorial/preds/lamella'
log_dir: '/scratch/cryosiam_tutorial/'
prediction_folder: '/scratch/cryosiam_tutorial/preds/semantic_particle'

trained_model: '/scratch/cryosiam_tutorial/models/cryosiam_semantic_myco_candidates.ckpt'
file_extension: '.mrc'

test_files: null

parameters:
  gpu_devices: 1
  data:
    patch_size: [ 128, 128, 128 ]
    min: 0
    max: 1
    mean: 0
    std: 1
  network:
    in_channels: 1
    spatial_dims: 3
    out_chanels: 14
    threshold: 0.7

hyper_parameters:
  batch_size: 2

Run:

conda activate cryosiam
cryosiam semantic_predict --config_file=configs/config_semantic_particle.yaml
cryosiam semantic_to_centers --config_file=configs/config_semantic_particle.yaml

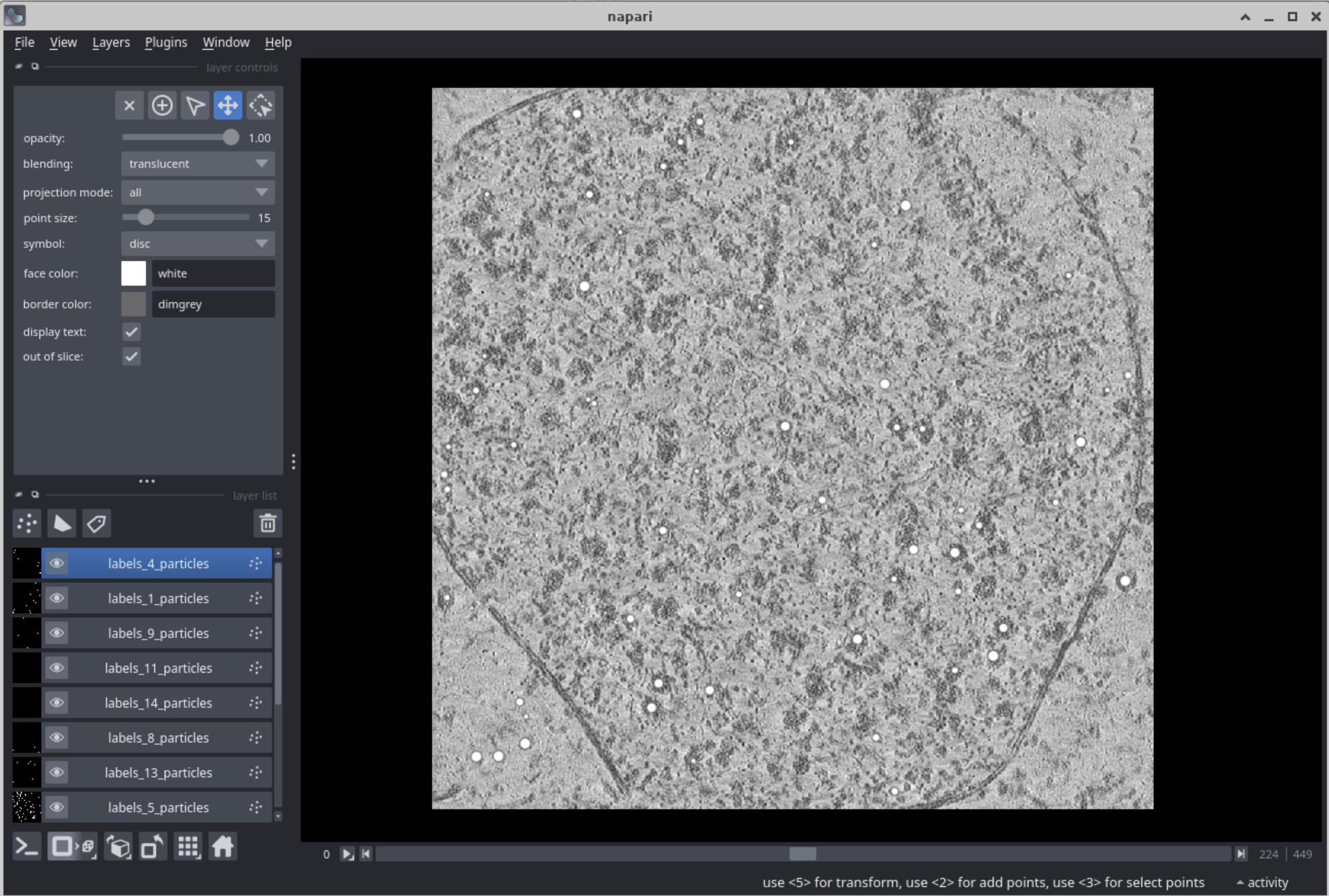

Visualize with:

conda activate cryosiam_vis
cryosiam_vis visualize_semantic --config_file=configs/config_semantic_particle.yaml  --filename TS_02.mrc

Output:

Troubleshooting¶

Symptom	Fix
TS_02 missing or different extension	Check the downloaded filename and set `file_extension` accordingly.
GPU OOM	Reduce `batch_size` in the configs.

Notes¶

CryoSiam models are trained primarily on lamella regions; always gate with the lamella mask to avoid false positives outside the lamella.
